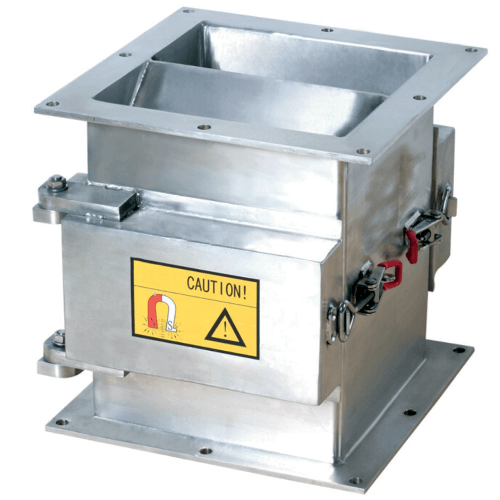

Granular Vertical Flow Fine iron impurity extraction Plate Magnet Housing
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
- The Plate Magnet Housing is a complete solution, consisting of Plate Magnets hinged to the housing like doors for easy cleaning in a self-contained housing with an inlet and outlet for raw material entry and egress.
- A wedge-shaped baffle at the top of the housing helps to break up aggregated products and direct material flow over the unit’s two powerful Plate Magnets.
- The high-power rare-earth plate magnets ensure capture of all sizes of contamination.
- Available in Square or Round flange as desired and SS304 or 316 construction.
