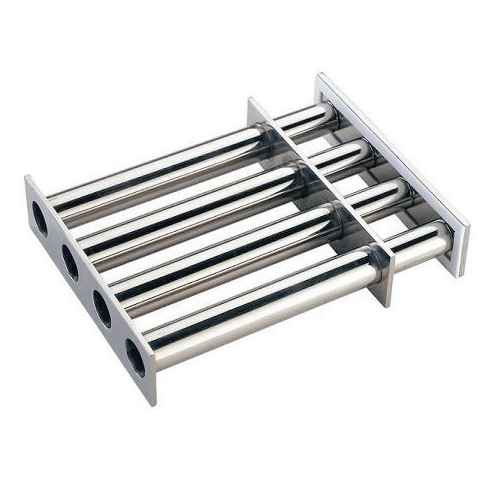

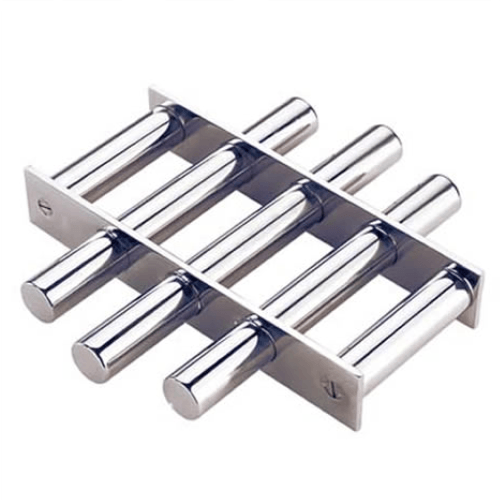

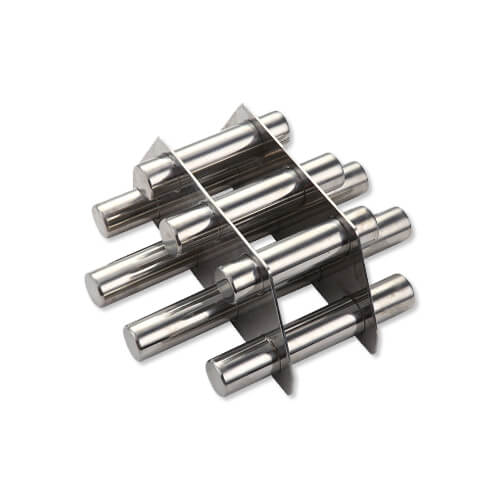

Versatile rare earth extreme power direct impact Impurity separation Grate Magnet
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
-
Extreme power, readymade grids of round or square profile
-
Comprised of rare earth or ceramic of standard 1" dia or upto 2" dia magnet rods arrayed on 50mm centers with 12000 Peak Gauss for the 1" dia & 15000 Gauss for the 2" dia type.
-
Can be made with or without angular or rod baffle deflectors, can be designed in normal or easy cleaning modes, can be designed with single or multiple layers
- Defacto choice for extremely fine grained ferrous or ferric tramp iron in food and ultra-sensitive process lines
